General
The NDGL series load isolation switch offers energy-saving features, insulation protection, and new performance upgrades while maintaining consistent quality. It serves as a reliable solution for safe electricity management. Focus on the electrical industry to improve work efficiency.
Scope of application: Power distribution equipment for industrial enterprises, suitable for infrequent switching, circuit disconnection, and electrical isolation in various sectors such as construction, retail stores, and the petrochemical industry.
STRUCTURAL FEATURES
1.Special handle
Each isolation switch isequipped with a specia!handle, which needs to beinstalled by itselfHandle selection of qualityplastic, improve theconvanience of operation,increase the appearance offullness, thick and stable,long-term use is not easy fobreak.
2.Insulating case
Glass fiber reinforced unsaturatedpolyester film plastic, corrosionresistance, impact resistance,arc resistance.
3.Thickened copper pieces
Sufficient materials, thick copperparts, ensure good electricalconductivity, more convenientconnection, more secure use.
4.Electrode structure
The contact structure is twoseparate contact surfaces withparallel double breakpoints, andthe pressure of the contact isprotected by a sheet spring.

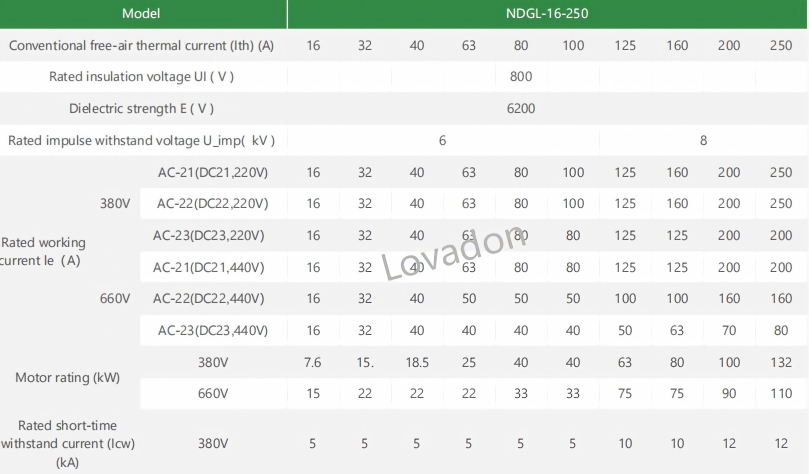

Technical Parameters
 Load Isolation switch |
| Material | Glass fiber reinforced unsaturated polyester |
| Rated Voltage | 400V/690X |
| Certificate | ISO, CE |
| Color | Gray |
| Rated frequency | 50Hz |
| Standard | IEC60947-3,GB14048.3 |
| Number of Pole | 3P,4P |
| Rated Current | 63A,100A,160A,250A
|
